Best 2-5
Submersible

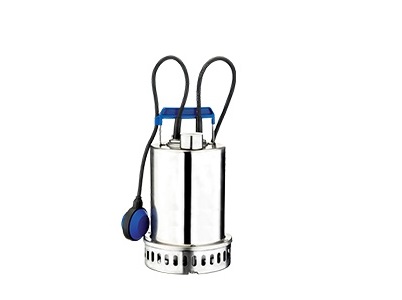

EBARA Submersible electric pump completely in AISI 304 stainless steel.
The pump body, the impeller, the suction grille, the motor cover, the seal holder disc and the motor
case are in AISI 304.
The shaft is in AISI 303 (part in contact with the liquid). Double mechanical seal with oil chamber: the upper one in Carbon/Ceramic/NBR (motor side), the lower one in SiC/SiC/NBR (pump side).
PUMP TECHNICAL DATA
• Total head from 2.9 to 18.4 m
• Capacity from 1.2 to 21.6 m3/h
• Maximum immersion 7 m
• Maximum liquid temperature 35°C
• Maximum solid size passage 10 mm
