Dispermix

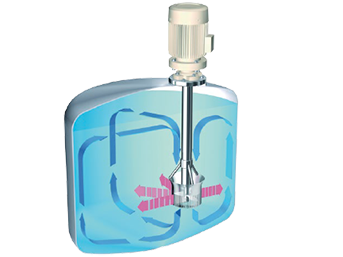

The YSTRAL Dispermix is used when the powder/liquid-to-liquid mixing is insufficient and a shear ring dispersion is too intense. The Dispermix subjects the container contents to vertical intensive mixing in the micro and macro range whilst dispersing the product in the same operation. Additional downstream sheer-ring dispersion is omitted.
With its optimal mixing/ dispersion performance, higher economic potential and easy-to-use mixing tools, the Dispermix meets the demanding requirements of high-end production processes to induct liquids or powders into liquid.
Advantages
- Effective micro and macro mixing of the complete container contents without air ingress
- Simultaneous comminution of agglomerates and therefore improved wetting of powder with liquid
- Heavy sediments are also suspended and dispersed
- Different slot widths allow adaptation to the corresponding application
- Rotating parts are protected against unintended access
- Tank installation from above, below or laterally or operation on the lifting frame
Technical data
- Power: 0,5 – 55 kW
- Voltage: 230 / 400 / 500 V, 50 Hz, custom voltages possible
- Speed: 750 / 1.500 min-1, 1,500 / 3,000 min-1 stepless up to 3,600 min-1 with frequency converter
- Seal: Lip seal, mechanical seal single or double depending on application condition
- Options: Explosion-resistant design, certificate, qualifications
- diving part: Stainless steel 1.4404 (AISI 316 L), special material
- Bearing flange: Aluminium coated, 1.4404 (AISI 316 L)
