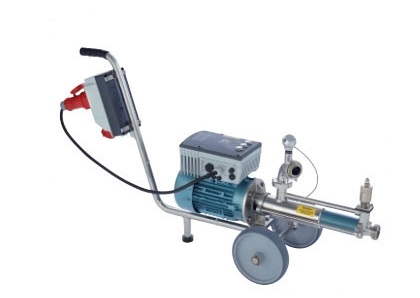

Kiesel eccentric screw pump
Capacity range: 8,1 to 30 m³/h
Characteristics:
- gentle handling: with mash no release of turbid and tanning
- hollow rotors with extremely high eccentricity = low destruction of fruit cores
- uniformity, pulsation-free conveying
- self-priming, conveying without additional external auxiliary equipment
- extension of a funnel with feeding screw mashing
- connections 90 Maische alt. DN 65 DIN 11851
- conveyance from hot mash up to 100°C possible
The complete pumps, are made of stainless steel 304L material. This includes casing, chassis, shaft, feeding-screw, joint pieces and special hollow rotor.
The pumps run completely vibration-free, due to the light weight of the construction. The speed is chosen to be slow or regulated with a frequency converter in order to reach a conservative promotion without smashing the transported material or causing an increasement of the under concentration.
The joint of the pumps are constructed to easy cleaning possibilities. The pumps can run in both directions.
