Evm

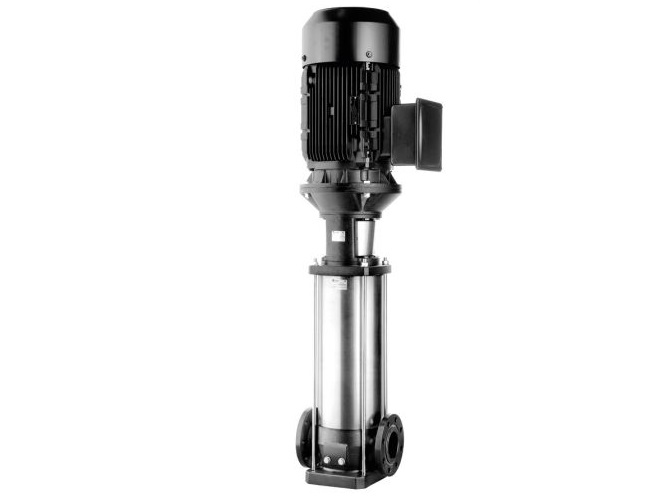

EBARA VERTICAL MULTISTAGE ELECTRIC PUMPS in cast iron, AISI 304, AISI 316
PUMP TECHNICAL DATA
- Maximum working pressure: 16 bar, 25 bar, 30 bar for EVM32 - EVM45 only
- Temperature of the liquid: from -15°C to +120°C
- Maximum solid content: 50 ppm (particle size 0,1-0,25 mm or less)
- Maximum Chlorine ion density: 500 ppm
APPLICATIONS
- Suitable for civil, industrial, agricultural and fire-fighting pressure boosting systems
- Primary water treatment plants
- Reverse osmosis, seepage, etc.
- Moving moderately aggressive fluids
- Boiler loading
- Washing
- Heating systems and air-conditioning
MOTOR TECHNICAL DATA
- High efficiency IE2 motors starting from 0,75kW
- Self-ventilated 2 poles asynchronous motor
- Class of insulation F
- IP55 Protection degree
- Single phase voltage 230V ±10% 50Hz,
- three phase voltage 230/400V ±10%, 50Hz (up to 4 kW included), three phase voltage 400/690V ±10% (5.5 kW and above)
