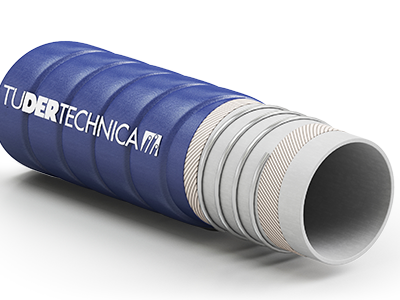

Glidetech dairy
Extra flexible suction and delivery hose suitable for milk and milk by-products
TECHNICAL CHARACTERISTICS
Temperature range: -40°C / +80°C
Reinforcement: synthetic plies, galvanized wire helices
Cover: wide corrugated, blue, low friction material, non-marking when dragged on the floor, abrasion, ageing, ozone, oil and chemical resistant, easy to clean, glossy cover
| Inside
Diameter | Outside
Diameter | Vacuum | Working
Pressure | Burst
Pressure | Weight | Bending
Radius |
| (mm) | (mm) | (bar) | (bar) | (bar) | (kg/m) | (mm) |
| 51 | 66 | 0,9 | 10 | 30 | 1,90 | 3,94 |
| 63,5 | 78,5 | 0,9 | 10 | 30 | 2,30 | 5,12 |
