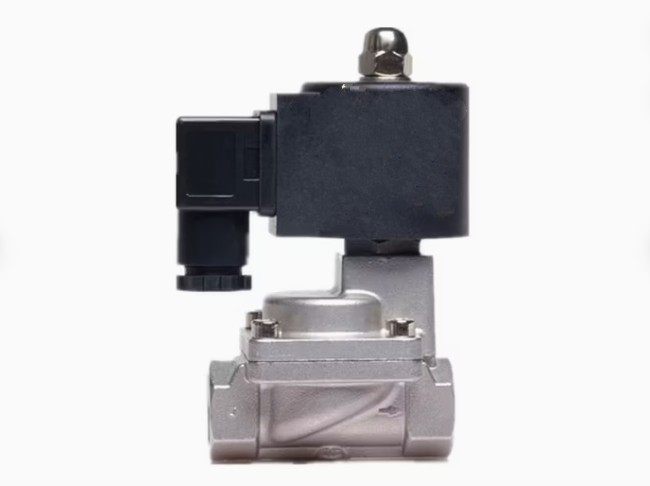

Pilot piston type solenoid valve
Operation Medium: Steam, air, water, light oil (below 50CST fluid), micro-corrosive media, multiple chemical fluids
Key Features
- 2/2 WAY
- Stainless Steel Body
- Sizes: 1/2" to 2"
- Seals: FKM (VITON)
- Temperature: -10°C to 150°C
- Operating pressure: 0,5bar to 16bar
- Normally Closed
- BSP Connections
- Available in 220VAC, 24VAC, 24VDC
- Installation: Horizontal or Slant
