Ps

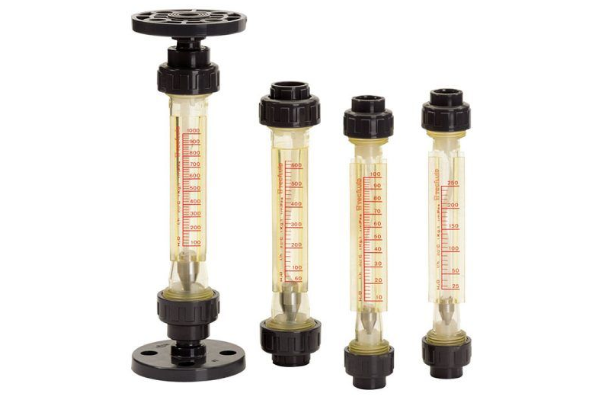

Variable Area Flow Meter
Application areas
Industrial process control in water treatment, osmosis, cooling and heating circuits, gases control. Available also for chemical, petrochemical, paper, pharmaceutical industry due to their high chemical resistance.
Product description
Variable area flowmeters for liquids and gases, made of transparent technical plastics.
Light weight, simple installation and excellent readability with low cost.
Measuring Range:
- 4 l/h … 50 m3/h H2O a 20ºC
Accuracy:
- PT/PS models +-4% f.s.
- PTM/PSM models +-6% f.s.
Connections:
- DIN DN15 … DN80 flanges
- Threaded fittings from ½” to 3” BSP
- PVC solvent weld socket fittings
- SS fittings for welding
Materials:
- Flow tube: Trogamid T, Polysulfone and NAS
- Wetted parts/fittings: PVC, EN 1.4404 (SS 316L), Steel, PP
- Other on request.
Options:
- 11 or 2 adjustable reed switches
- 4-20 mA transmitter (max. resolution 18 points)
- HART ™ protocol, Profibus, Fieldbus on request
