Submersible

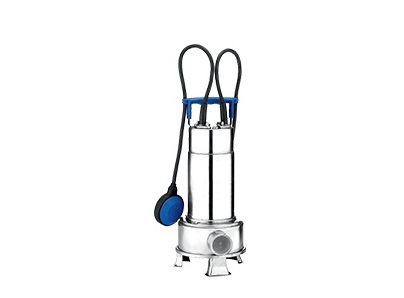

EBARA: Submersible electric pump for waste water in AISI 304 stainless steel.
Pump body, impeller, motor cover, seal holder disc and motor case in AISI 304. Shaft in AISI 303
(part in contact with the liquid). Present the double mechanical seal with oil chamber: the upper one in Carbon/Ceramic/NBR (motor side) and the lower one in SiC/SiC/NBR (pump side).
PUMP TECHNICAL DATA
• Total head from 2 to 9.5 m
• Capacity from 2.4 to 18 m3/h
• Maximum immersion 7 m
• Maximum liquid temperature 50°C
• Maximum solid size passage 35 mm
• Provided with 5 m of power cable type H07 RN - F (on request 10 m of power cable)
