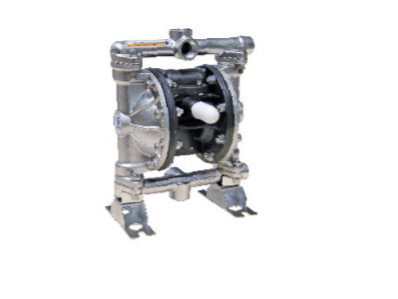

Stainless steel pump
Traits of flying pump:
Adopts precision casting, the surface is smooth and neat, and has higher strength.
Ball valve with special machine further grinding, high degree of roundness, good sealing performance.
| Technical Parameters | |
| Suction lift (mwc)
| dry 4
wet 7.6 |
| Max particle diameter (mm) | 2.5 |
| Suction and discharge size (in)
| 1/2
3/4 |
| Air inlet size (in) | 3/8 |
| Max flow (l/min) | 57 |
| Max head (m) | 84 |
| Max air inlet pressure (bar) | 8.4 |
| Material Quality | |
| Pumpbody | SS304, SS316, SS316L |
| Diaphragm | Santoprene, Hytrel, Teflon, Viton, EPDM |
| Valve ball | Teflon, Stainless steel, Santoprene |
| Valve seat | SS304, SS316, SS316L |
| Center block | PP |
