Tc.evo

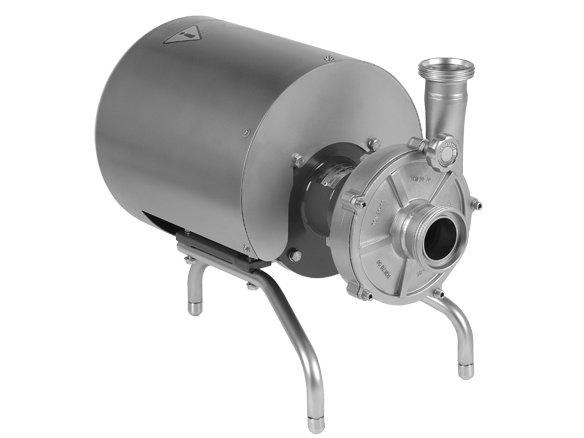

TECNICAPOMPE: Hygienic centrifugal pump series TC.EVO
TECHNICAL FEATURES
Material: Aisi 304/Aisi 316
Impeller: Open 2/4 blades, Semi-open 8 blades ømax 185mm.
Connections: DIN 11851, Clamp, GAS-BSP, DIN 11864, ecc.
Motor: 2-4 poles, IEC flange B5, IP55, Aluminum
Mechanical Seal: Internal or double flushing
PERFORMANCE
Wine, Milk, Beer, Water, Chemical-Pharmaceutical
Capacity up to 100 m³/h (370 Imp.g.p.m.)
Total head up to 50 meters of water column (165 feet)
Max fluid viscosity: 1.000 cP
Solids in suspension max ø8mm
