Tm

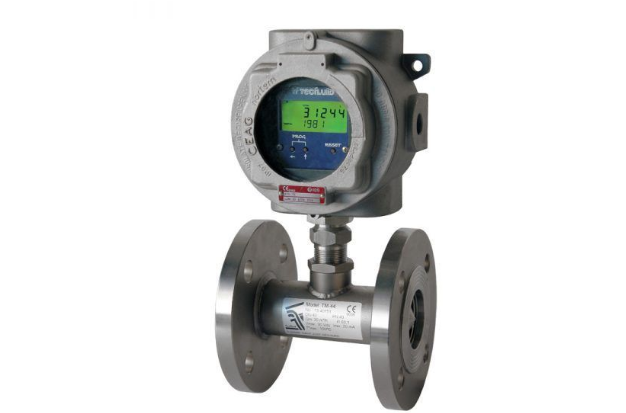

Turbine Flow Meter
Application areas
All kind of industrial processes in chemical and petrochemical industry, liquified gas systems, high pressure systems.
Product description
Suitable for flow measurement of liquids or volume totalizer, with several options for the electronic converters. Suitable for all flow directions with good performance with clean and low viscosity liquids.
Measuring Range:
- 300 l/h … 1100 m3/h H2O
Accuracy:
- ± 0,5%
Connections:
- DIN2502 DN15…DN50 PN40 flanges
- DN10…DN500 PN16
- ANSI flanges
- BSP o NPT threaded connections
- DIN11851 sanitary connection
Materials:
- Body: EN 1.4404 (AISI 316L)
- Propeller: EN 1.4416 (AISI 430
Options:
- Design for high pressure on request
- Special design for converters from different manufacturers
