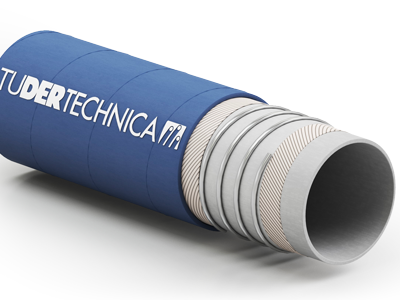

Tualcomaster
Light and flexible suction and delivery hose suitable for alcohol concentration up to 96%. Can be used for fatty and non-fatty food products.
TECHNICAL CHARACTERISTICS
Temperature range: -35°C / +100°C
Reinforcement: synthetic plies, galvanized wire helices
Cover: smooth, blue, abrasion, ageing, ozone and oil resistant, cloth finish
| Inside
Diameter | Outside
Diameter | Vacuum | Working
Pressure | Burst
Pressure | Weight | Bending
Radius |
| (mm) | (mm) | (bar) | (bar) | (bar) | (kg/m) | (mm) |
| 25 | 35 | 0.9 | 6 | 18 | 0,76 | 3,35 |
| 51 | 62 | 0,9 | 6 | 18 | 1,52 | 8,27 |
